Sized just right at a 75%, this is a compact configuration to feature the top function row. The ID80V2 mechanical keyboard kit makes a great fit on any desk. This board is both durable and easy to build. Its PCB also features Kailh hot-swappable sockets, which allow users to quickly change switches without a soldering iron.

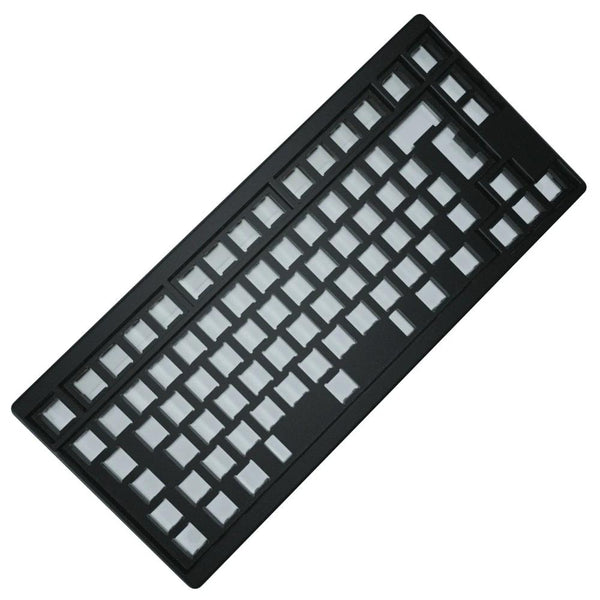

Case material: Aluminum Bottom material: Acrylic Angle: 6 degrees Weight: 1.36 kg (Weight of upper shell and brass counterweight bottom shell) Dimensions: Width 14.2cm x length 31.3cm Integrated plate ANSI layout or ISO layout Per-key white LED Programmable with QMK firmware

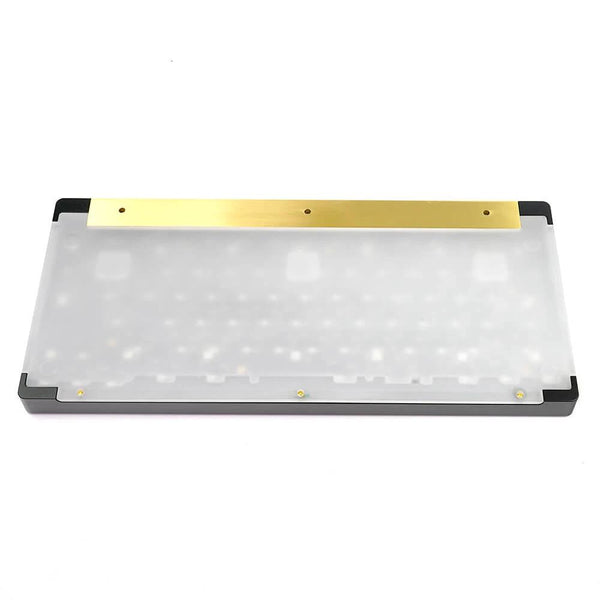

1x Top case (Aluminium) 1x Bottom case (Acrylic) 1x brass counterweight 1x Kailh Hot swap PCB 6x Phillips screws(M2x10) 14x gold-plated cross screw(M2X4) 2x electric resistance 3x Kailh Sockets 4x stabilizer(ANSI) 1x USB Type-c data cable 1x foot pad
